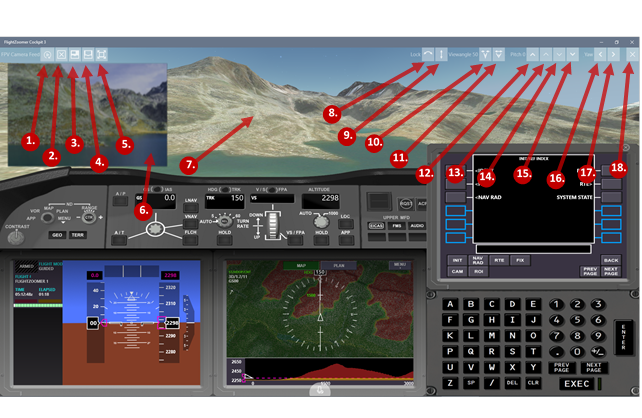

Feature :: Command

Remarks

1

Real FPV Camera :: (Re-)Initialize camera

Allows to restart the video device. Used to restart video display if it has been interrupted.

The video input device itself needs to be selected on the settings screen.

2

Real FPV Camera :: Switch off

3

Real FPV Camera :: Show as overlay

Overlay window can be dragged anywhere on the screen and can also been resized.

4

Real FPV Camera :: Show screen wide

The screen wide real FPV camera replaces the synthetic FPV camera. It can be moved up and down.

5

Real FPV Camera :: Show full screen

The real FPV camera is shown across the full screen.

6

Real FPV Camera :: Real FPV camera view

In this screenshot the real FPV camera is shown as the overlay window.

7

Synthetic FPV Camera :: Synthetic FPV camera view

The synthetic FPV camera is always shown screen wide. The viewing direction can be dragged around by sweeping the finger over the screen or by clicking with the mouse and moving while the left button is pressed.

8

Synthetic FPV Camera :: Lock bank angle

Gimbal feature on the bank angle: the bank angle of the synthetic FPV camera stays fixed.

9

Synthetic FPV Camera :: Lock pitch angle

Gimbal feature on the pitch angle: the pitch angle of the synthetic FPV camera stays fixed.

10

Synthetic FPV Camera :: Zoom in

Reduces the field of view.

11

Synthetic FPV Camera :: Zoom out

Increases the field of view.

12

Synthetic FPV Camera :: Increase pitch angle by 15 degrees

Increases the constantly applied offset to the pitch angle by 15 degrees. Command can be repeated but only as long as the resulting pitch angle does not exceed 0 degrees (limitation of the MapControl)

13

Synthetic FPV Camera :: Increase pitch angle by 5 degrees

Increases the constantly applied offset to the pitch angle by 5 degrees. Command can be repeated but only as long as the resulting pitch angle does not exceed 0 degrees (limitation of the MapControl)

14

Synthetic FPV Camera :: Decrease pitch angle by 5 degrees

Decreases the constantly applied offset to the pitch angle by 5 degrees. Command can be repeated but only as long as the resulting pitch angle does not exceed -90 degrees (limitation of the MapControl)

15

Synthetic FPV Camera :: Decrease pitch angle by 15 degrees

Decreases the constantly applied offset to the pitch angle by 15 degrees. Command can be repeated but only as long as the resulting pitch angle does not exceed -90 degrees (limitation of the MapControl)

16

Synthetic FPV Camera :: Decrease yaw angle by 45 degrees

Increases the constantly applied offset to the yaw angle by 45 degrees.

17

Synthetic FPV Camera :: Increase yaw angle by 45 degrees

Increases the constantly applied offset to the yaw angle by -45 degrees.

18

Synthetic FPV Camera :: Reset to default

Resets the constantly applied offsets for the pitch and bank angle.
